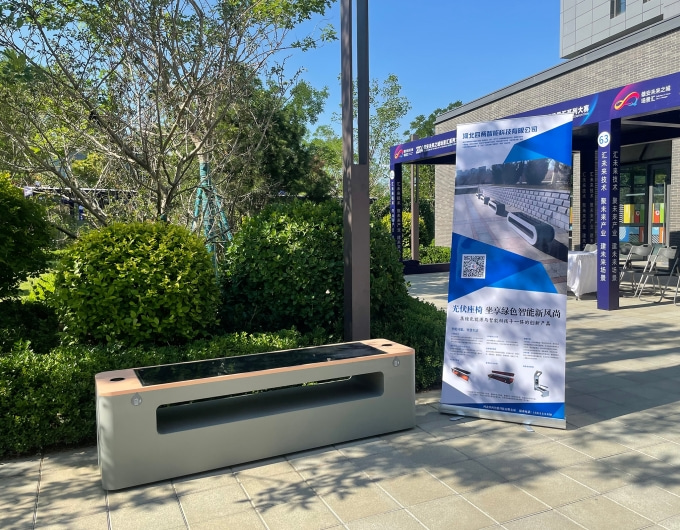

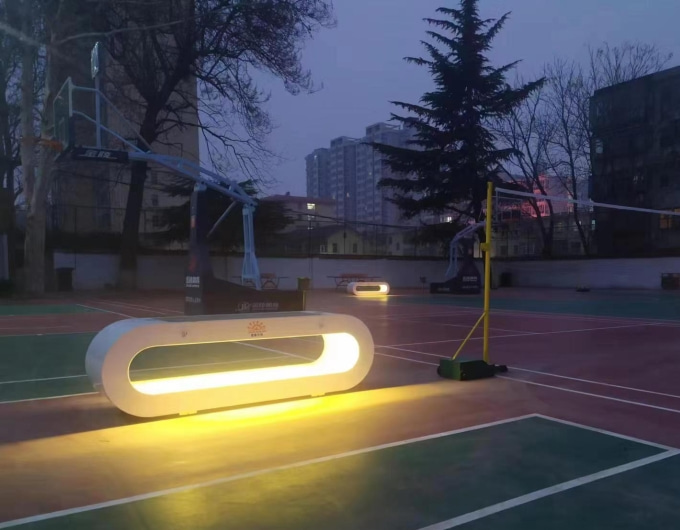

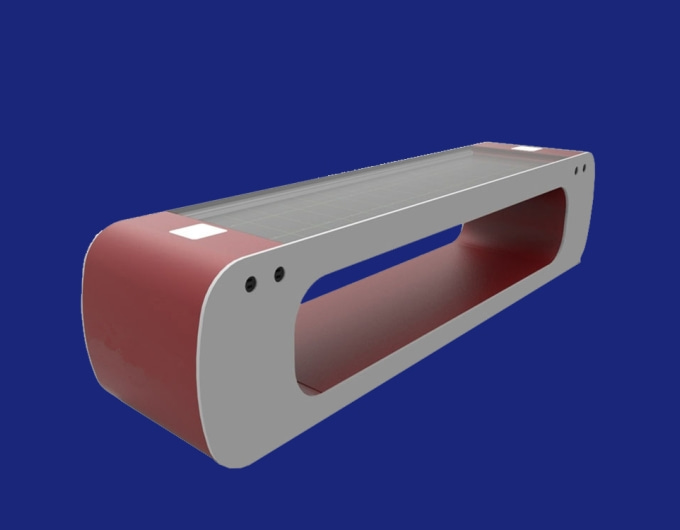

SL-ZY2201 Park Solar Powered Smart Seat

1、 Introduction to SL-ZY2201 Park Solar Intelligent Seating Equipment

SL-ZY2201 Park Solar Smart Seat is an outdoor public seat that combines solar power generation technology and intelligent control system. It converts sunlight into electrical energy through high-efficiency solar panels installed on the top or back of the seat, and stores it in the built-in high-performance battery. These electric energies can be used for various intelligent functions of the seat, such as wireless charging, LED lighting, environmental monitoring, etc. In addition, we have taken into account ergonomics in the design of the seats, providing a comfortable sitting experience.

2、 The main functions of SL-ZY2201 park solar smart seats

1. Remote control: Using remote control technology, Luo realizes Bluetooth sound, lighting, wireless charging, USB, WiFi coverage, and temperature control of the temperature control system for smart seats

2. Multi protection: Built in self-healing reverse protection, open circuit protection, high temperature protection, overcurrent/short circuit protection to ensure the normal operation of smart seats

3. AI Warning: Our self-developed warning program is capable of self sensing, self diagnosis, and self decision-making for faults. It is uploaded in real-time to the "Four Two Clouds" platform and reaches out to administrators to achieve precise prevention and control

4. High performance lithium-ion battery: equipped with a large capacity and long-life lithium-ion battery pack, used to store the electricity generated during the day for use at night or on cloudy days, with overcharge protection, undervoltage protection and other functions to ensure the safe and reliable operation of the battery.

5. Wireless charging station: The seat is equipped with a wireless charging area that supports Qi standard smartphones and other small electronic devices for wireless charging.

6. Including but not limited to the above functions.

3、 Application scenarios of SL-ZY2201 park solar intelligent seats

Solar powered smart seats are suitable for various occasions due to their unique design and multifunctional features

1. Urban Park: As a leisure facility within the park, it provides visitors with a comfortable resting place, as well as convenient charging and lighting services.

2. Commercial district: Installed in densely populated areas such as pedestrian streets and squares, it enhances the modern image of the commercial district and attracts customers to stop.

3. Campus: Provide a comfortable learning and communication space for students and faculty, while promoting knowledge of renewable energy.

4. Enterprise park: provides a place for employees to relax and enhance the comfort of the working environment.

5. Residential community: providing residents with a place for leisure and entertainment, enhancing the cohesion of the community.

4、 SL-ZY2201 Park Solar Intelligent Seat Equipment Parameters

1. Product Code: SL-ZY2201

2. Product size: 1800x450x480mm

3. Solar panel: 90W 18V

4. Solar controller: 12V/10A

5. Voltage conversion module: 12V to 5V 2A6 wireless charging module: 5V/2A18W

7. Bluetooth playback module: 12V50ma-500mA 50HZ-18KHz

8. LED lighting: 12V/10W

9. Wireless 4G router WIFI: 150Mbps, effective transmission distance: within 2-25 meters,

10. USB charging output voltage/current 5V/2.1A

11. Solar cell 12.6V55AH

Solar powered smart seats are not only a practical urban public facility, but also a perfect example of the integration of green technology and urban life. Its development prospects are broad and it will play an increasingly important role in future urban construction.
