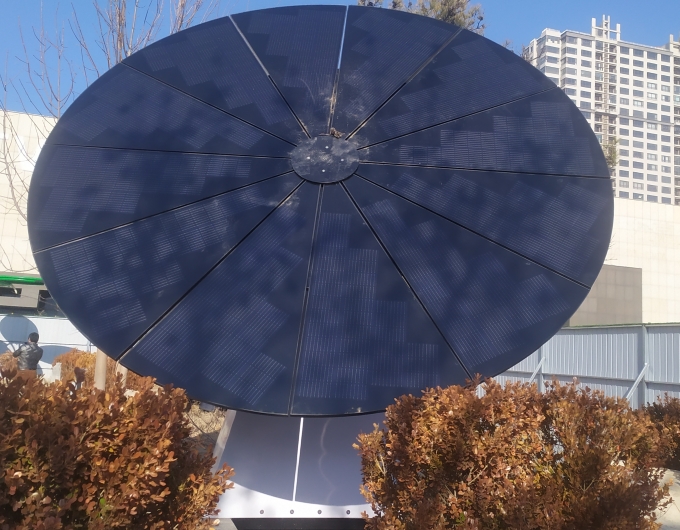

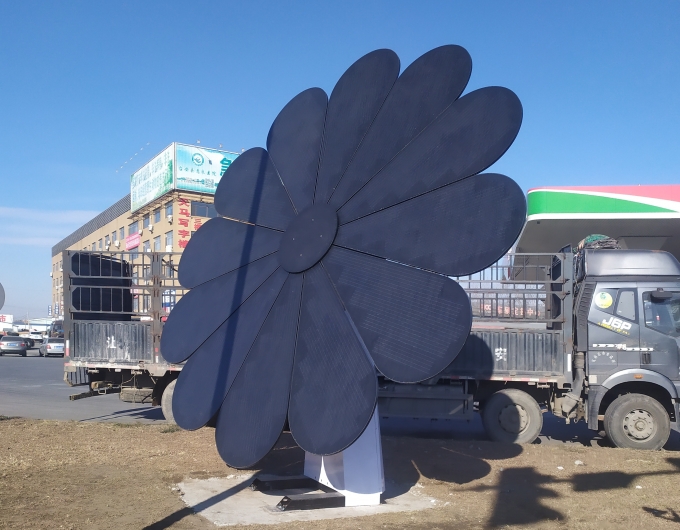

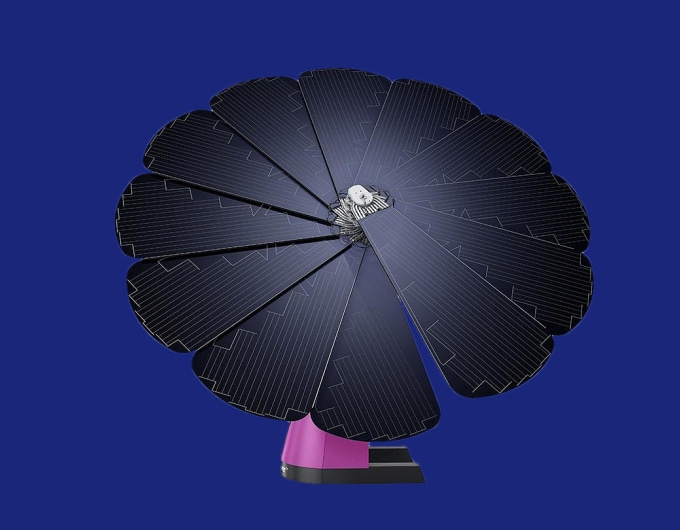

SL-DZGFH001 single axis solar photovoltaic flower

1、 Introduction to SL-DZGFH001 Single Axis Solar Photovoltaic Flower Equipment

SL-DZGFH001 single axis solar photovoltaic flower is an innovative outdoor zero carbon landscape infrastructure that integrates efficient photovoltaic panels and intelligent control systems. Its design inspiration comes from the blooming sunflower flowers in nature, and by imitating the petal structure to arrange solar cells, the entire device is both beautiful and practical. During the day, these "petals" can absorb sunlight to the maximum extent and convert it into electrical energy for storage; In case of insufficient light at night or on cloudy days, it will automatically close and release the stored electrical energy to supply power to the load.

2、 The main functions of SL-DZGFH001 single axis solar photovoltaic flower equipment

1. Support remote control, remote setting of quantified lighting on, etc

2. Including landscape lighting, equipment operation monitoring, photovoltaic power generation monitoring, energy storage operation monitoring, and load operation monitoring

3. Detect wind speed and temperature (expandable to detect PM2.5/PM10, relative humidity, etc.)

4. Night flat and illuminated display

5. Can remotely set the horizontal placement and minimum height angle of photovoltaic flowers (to avoid typhoons, rain, snow, and other weather conditions)

6. Real time push of equipment failure warning function to operation personnel's WeChat

7. Statistics on new energy generation and consumption of electrical equipment

8. Energy saving parameter statistics, such as real-time reduction of total carbon dioxide or greenhouse gas emissions, reduction of sulfur dioxide emissions, and other data display

9. Can be integrated with third-party backend, real-time display of backend data

10. By using global positioning tracking algorithms, it is possible to track the path of the sun throughout the day,

11. Real time monitoring of device operation status and global positioning system

12. Built in energy storage, can be used for integrated functions such as night lighting, broadcast audio, Bluetooth multimedia, etc.

3、 Characteristics of SL-DZGFH001 Single axis Solar Photovoltaic Flower Equipment

1. Intelligent tracking

2. Scheduled automatic cleaning

3. Power generation rate+40%

4. Simple installation

5. High utilization rate of the sun

6. Automatic opening and closing

7. Weather sensing

8. Self contained energy storage

4、 SL-DZGFH001 Single axis Solar Photovoltaic Flower Equipment Parameters (Specific equipment parameters need to be configured according to the project situation)

Total power of components: 1.2KW 5%

Power generation: 5-7kW · h

Net weight: 452.85KG

Maximum space size: 3600 * 3600mm

Energy storage capacity (optional): 2.4kWh/5kWh/10kWh

Tracking system: Single axis tracking (does not support folding)

Rated output: 110-220V

Voltage component efficiency: not less than 90% within ten years

Component lifespan:>20 years

Maximum hail impact level: 25mm; 23m/s

Working temperature:- 20~65C

Wind resistance coefficient: Level 8 wind; 20.7m/s

Waterproof grade: IP55

Installation: Assembly on foundation bolts or concrete foundations

In today's society, with the increasingly severe global energy crisis and environmental problems, the application of renewable energy has become an indispensable part of human sustainable development. Among them, solar energy, as one of the cleanest and richest natural resources, has shown great potential in many fields. The 'Solar Photovoltaic Flower' is precisely such a product that combines high technology with natural aesthetics. It not only provides users with green power support, but also beautifies people's living spaces.
